A high-temperature test room, also known as a temperature chamber or environmental chamber, is a specialized enclosure used to test how products or materials react to high temperatures. These chambers are designed to create controlled, extreme heat conditions to evaluate product reliability and performance under stress. They are used in various industries to assess the durability and lifespan of products in high-temperature environments.

Here's a more detailed breakdown:

What it is:

A high-temperature test room is a temperature-controlled enclosure that can simulate and maintain specific high temperatures.
It's a type of environmental testing equipment used to assess how products or materials behave under heat stress.

How it works:

These chambers utilize a combination of heating and cooling systems, like electric heaters and refrigeration systems, to achieve and maintain the desired temperature.
They may also include humidity control systems to simulate different environmental conditions.
Controllers monitor temperature and humidity, ensuring they stay within the specified parameters for the test.

Why it's used:

Reliability testing: To assess how long a product will function reliably at high temperatures.
Performance evaluation: To see how a product's performance changes under heat stress.
Material testing: To study the behavior of materials at high temperatures, including their strength, durability, and resistance to degradation.
Product development: To test prototypes and ensure they meet design requirements for high-temperature environments.
Failure analysis: To determine the root cause of failures that occur at high temperatures.

Applications:

Electronics:

Testing components, circuit boards, and entire devices for their ability to withstand heat from operation or environmental conditions.
Automotive:

Evaluating the performance of car parts, such as engines, under high-temperature conditions.
Aerospace:

Testing materials and components for use in high-temperature environments, like spacecraft or aircraft engines.
Plastics and polymers:

Assessing the heat resistance and stability of plastic materials.
Construction materials:

Evaluating the performance of building materials in high-temperature environments.
Medical devices:

Testing the durability and functionality of medical devices under heat stress.

Examples of test rooms:

Walk-in chambers:

Large chambers capable of accommodating entire vehicles or large components.
Benchtop chambers:

Smaller chambers for testing individual components or smaller products.
High-power series:

Test chambers designed for demanding automotive industry standards, with features like expanded temperature control, rapid temperature changes, and support for high heat-generating loads.
High-temperature test facility (HTTF):

A specific facility for testing nuclear reactors and their components at high temperatures.
Cryo chambers:

Chambers that can reach extremely low temperatures, sometimes combined with high temperatures.

模型	JQHTA-08	JQHTA-12	JQHTA-16	JQHTA-25	JQHTA-34	JQHTA-40
内部尺寸(厘米)	200200200	200300200	220350210	300400210	340480220	400500220
形状尺寸(厘米)	230360240	230460240	246520250	330560250	370660270	430660270
体积(升)	8.0立方米	12立方米	16立方米	25立方米	34立方米	40立方米
温度范围	前+10℃～+80℃/100℃/120℃/150℃/180℃
湿度范围	20%至98% RH(可选湿度)
温度变化	±0.5℃
温度均匀	±2℃
温度加快	3℃/分钟或定制
外部材料	疲劳式试验箱标准彩/冷轧钢板涂层/覆膜金属板
内部材质	不锈钢板SUS304
控制器	TW台达PLC,7”彩色触摸屏控制
配置接口	具有USB,WLAN,RS232端口,测试端口APP功能可选
保护者	韩国进口Autonics超温保护器,韩国彩虹干烧保护器,加湿保护,缺水保护,过载保护,高压保护,漏电保护.当设备发生故障时,自动停止运行.
电源	交流380V@50Hz

Inquiry Cart 0

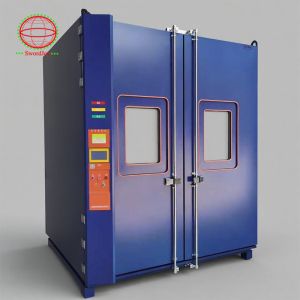

Environmental High Temperature Testing Chamber AC380V 50Hz Customized
